Solo Bars

Solo Bars

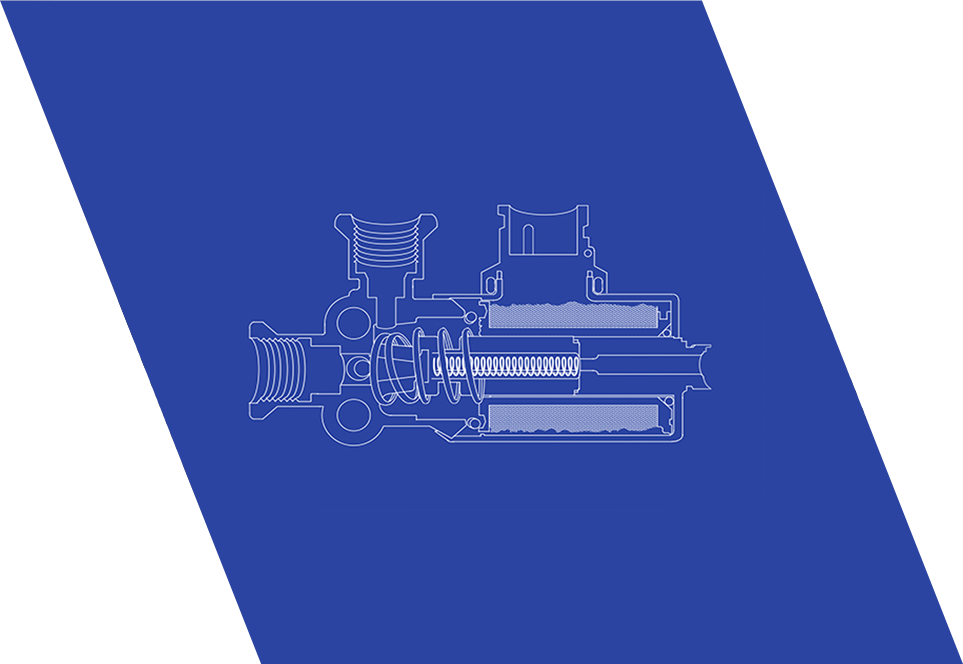

A solenoid valve, operated by electromagnetism, regulates the flow of various substances. Its primary task is to control the flow or distribution of fluids or gases as needed. Comprising a plunger and a core tube, it's energized by a coil, allowing for precise flow adjustments without overheating.

Forms
  • Shape: Round
  • Diameter: 5 mm (3/16”) – 55 mm (2 3/16”)]
  • Tolerance: ASTM A484 and ISO 286
  • Length: 2.0 m (6.5’) – 7.8 m (25.5’)
  • Surface: 0.4 µ
  • Magnetic Annealed
NORM
VENUS ASTM A838 EN 10088-3 DIN
SOLO 12 Alloy1 , Grade 2 1.4105 X6CrMiS17
SOLO 21 Alloy2 , Grade 1 1.4105 X6CrMiS17
SOLO 34 - 1.4106 X6CrMiS17
PHYSICAL PROPERTIES

Our typical values for this grade’s physical properties are as follows.

Density Specific Heat (20C) Condctivity (20C) Electrical Resistivity Thermal Expansion Curie Temperature Modulous Elasticity
7.62 g/cm3 460 J/Kg.K 23 W/m/K 600 µOmm 11.9x10- /K 660 °C 220 kN/mm2
0.276 lb/in3 0.109 Btu/lb/F 13.28 Btu/ft/hr/F 360 ohms-cir mil/014 6.6x10 /F 1240°F 31.9 x 10-6 psi

* Mean Coecient of Linear Thermal Expansion from 20 °C to 500 °C.

MAGNETIC PROPERTIES

Our typical values for this grade’s physical properties are as follows.

Grade Saturation (Bs) Relative Permeability (µ) Coercive Force* (Hc) Residual Induction (Br)
SOLO 12 1.6 T min 400 min 480 A/m max 0.60 T min
SOLO 21 1.6 T min 1200 min 206 A/m max 11 T min
SOLO 34 1.6 T min 1600 min 300 A/m max 0.50 T min

* Measured at Field Strength 60000 A/m
